• 6-speaker audio system (Standard on Crew Cab and Double Cab models and Included and only available on Regular Cab models with (IOB) 7" diagonal color touch screen display radio with Chevrolet MyLink)
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars

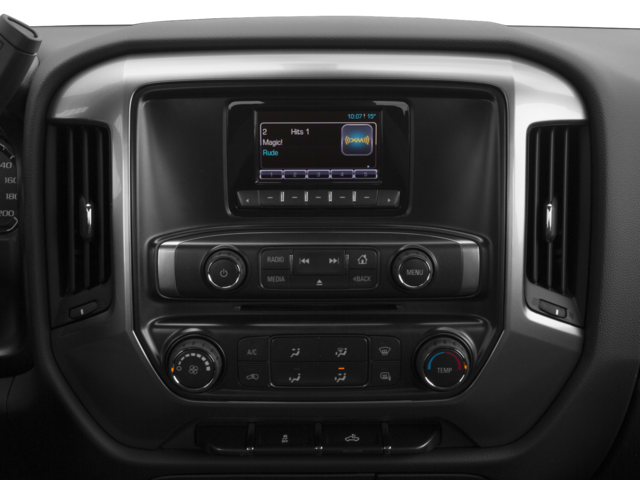

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB port and auxiliary jack (Upgradeable to (IOB) 7" diagonal color display radio with Chevrolet MyLink. Dynamic guidelines not available on IO3.) (Not available with (AZ3) 40/20/40 split-bench seat. Upgradeable to (IOB) 7" diagonal color display radio with Chevrolet MyLink. Dynamic guidelines not available on IO3.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Seat trim, Vinyl

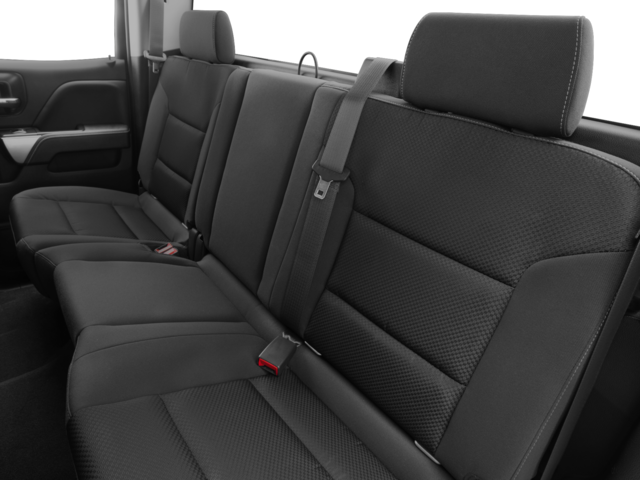

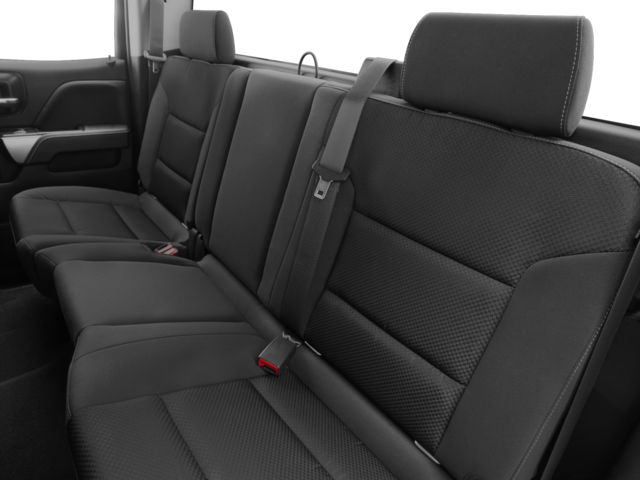

• Seat, rear full-width folding bench, 3-passenger (includes child seat top tether anchor) (Requires Double Cab models.)

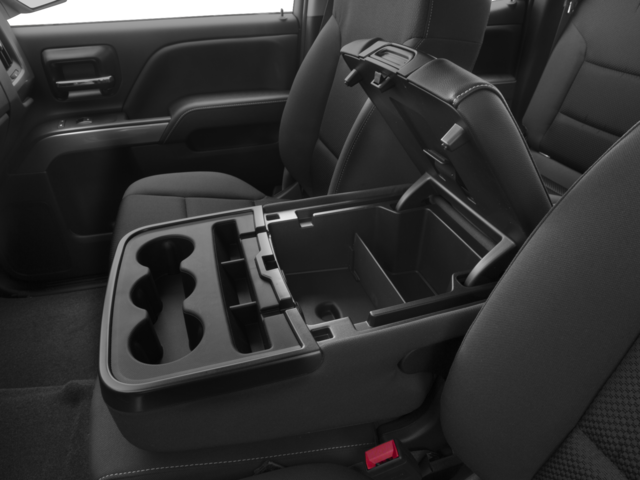

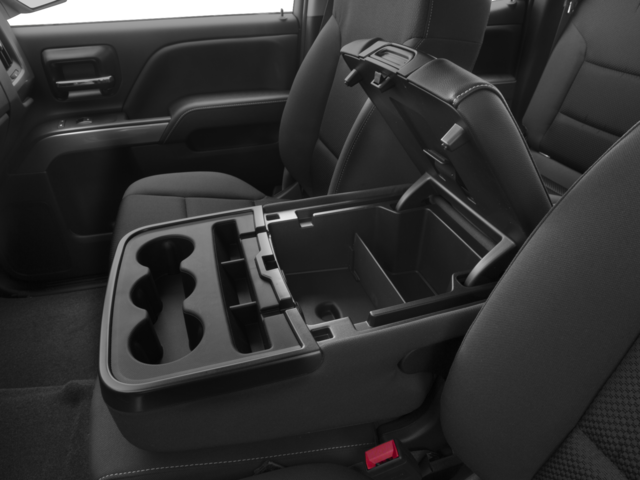

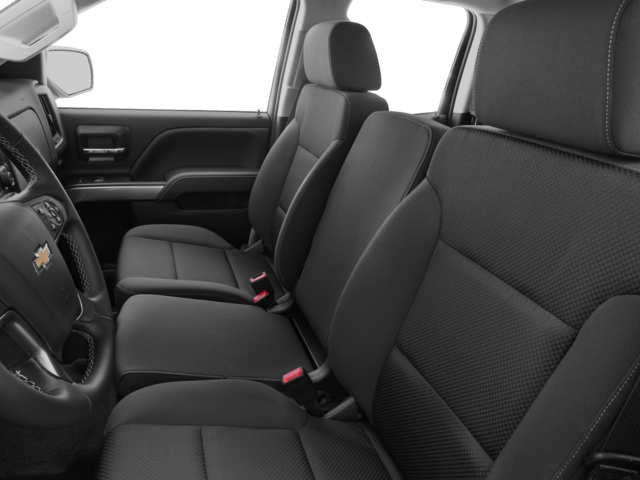

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Upgradeable to (AZ3) front 40/20/40 split-bench seat.)

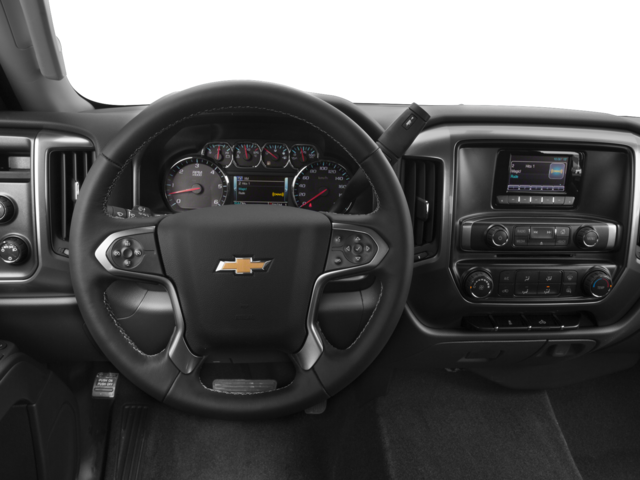

• Steering column, manual Tilt-Wheel
• Steering wheel
• Windows, power with driver express up and down and express down on all other windows (Standard on Crew Cab and Double Cab. On Regular Cab, Included and only available with (PCM) WT Convenience Package.) (Standard on Crew Cab and Double Cab. On Regular Cab, Included and only available with (PCR) WT Fleet Convenience Package.)
• XM Satellite Radio, delete

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Rear wheel drive
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball with smart flow power steering system
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar

• Air bag deactivation switch, frontal passenger-side (Included and only available with (ZW9) Pickup box delete on Double Cab and Regular Cab models only. Note: Crew cab does not receive the air bag deactivation switch when ZW9 package is ordered.)
• Air bags Double and Regular Cab: Frontal Airbags- Driver single stage and Front Passenger dual-stage; Thorax side-impact, seat mounted, both driver and front passenger; Head-curtain front and rear outboard seating positions; Passenger Sensing System - Infant only suppression for passenger and passenger seat belt reminder status displayed on overhead console (With (ZW9) pickup box delete on Double and Regular Cab you will get single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete also deletes driver information center compass
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

PICKUP BOX, DELETE

• includes (SFW) Back-up alarm calibration
• (9J4) rear bumper delete
• spare tire delete and spare tire carrier delete.

WHEELS, 17" (43.2 CM) STEEL

• includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

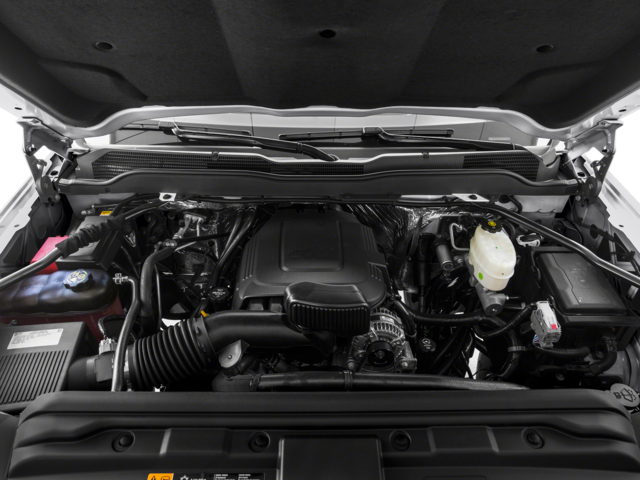

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI, E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket back up alarm.

UNDERBODY SHIELD, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

UPFITTER SWITCHES, (4)

• Provides 4-30 amp circuits to facilitate installation of aftermarket electrical accessories

• BATTERY 730 COLD-CRANKING AMPS AUXILIARY
• LABEL FASTEN SAFETY BELTS
• SHIP THRU PRODUCED IN FT. WAYNE ASSEMBLY AND SHIPPED TO KNAPHEIDE TRUCK EQUIPMENT FLINT MI AND RETURNED TO FLINT ASSEMBLY FOR SHIPPING TO FINAL DESTINATION.
• SUMMIT WHITE
• DEFOGGER REAR-WINDOW ELECTRIC
• REMOTE KEYLESS ENTRY Includes (A91) remote locking tailgate.)
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 3.73 RATIO
• LICENSE PLATE KIT FRONT
• POWER OUTLET 110-VOLT AC
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• PICKUP BOX DELETE includes (SFW) Back-up alarm calibration (9J4) rear bumper delete spare tire delete and spare tire carrier delete.
• GVWR 9500 LBS. (4309 KG)
• ALTERNATOR 220 AMPS
• TIRE SPARE LT265/70R17E ALL-TERRAIN BLACKWALL
• WHEELS 17" (43.2 CM) STEEL includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• AUDIO SYSTEM 4.2" DIAGONAL COLOR DISPLAY AM/FM STEREO with USB port and auxiliary jack (STD)
• BUMPER REAR DELETE
• PAINT SOLID
• DARK ASH WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
• WHEELS 17" X 7.5" (43.2 CM X 19.1 CM) FULL-SIZE STEEL SPARE.
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE (includes driver's side spotter mirror)
• BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back up alarm.
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• UPFITTER SWITCHES (4) Provides 4-30 amp circuits to facilitate installation of aftermarket electrical accessories
• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL
• Locking/Limited Slip Differential
• Rear Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Vinyl Seats
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Passenger Air Bag On/Off Switch
• Telematics
• Requires Subscription
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 720
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3596
• Curb Weight - Rear (lbs): 2604
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1440
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3600
• Maximum Trailering Capacity (lbs): 14500
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QXT
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QXT
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZXT
• Front Tire Size: LT265/70R17E
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT265/70R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT265/70R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 53.1
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 158.10
• Length, Overall w/o rear bumper (in): 248.90
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 77.87
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 141.60
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.80
• Ground Clearance, Rear (in): 8.50
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.80
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.60
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): 62.20
• Cargo Volume (ft³): 76.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 38.67
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.23
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Double Cab Pickup
• Body Code: ZW9
• Body Code: E63
