• Air conditioning, single-zone manual front climate control
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)

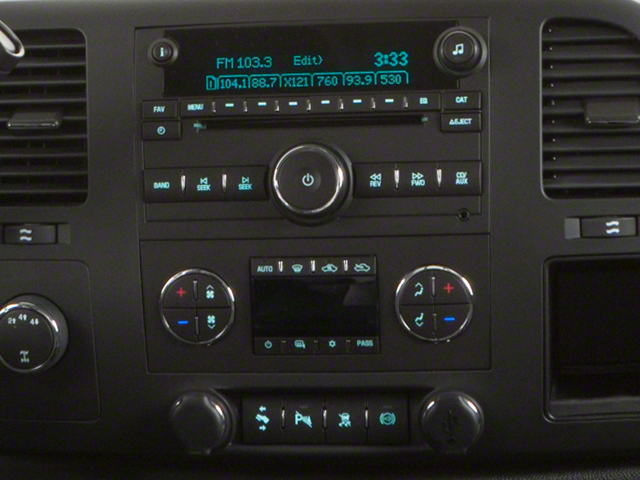

• Audio system, AM/FM stereo with seek-and-scan and digital clock (Not available with (U2K) XM Radio.)
• Coat hooks, rear driver and passenger side
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Floor covering, Black rubberized vinyl
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview manual day/night
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt

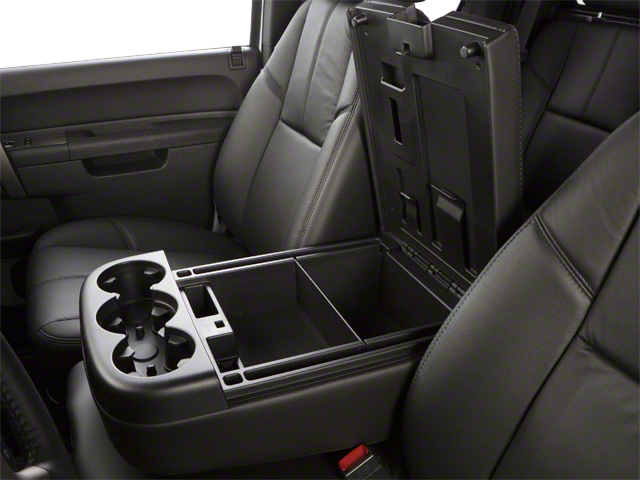

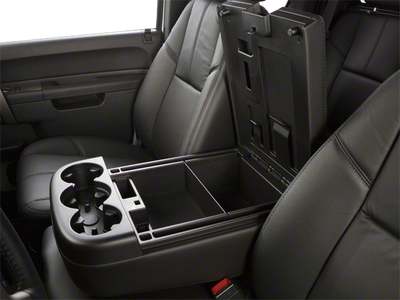

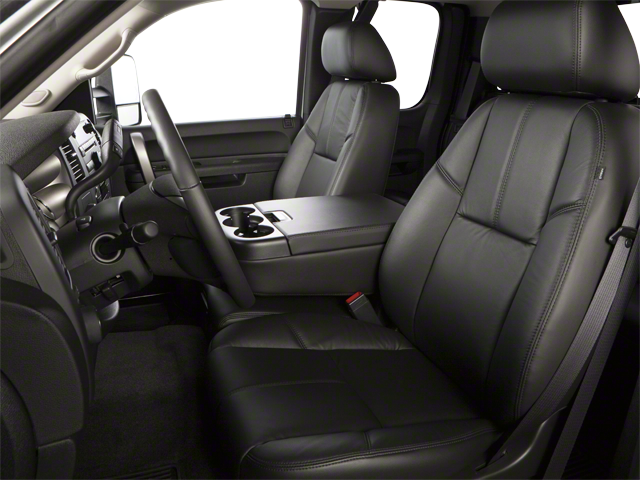

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage

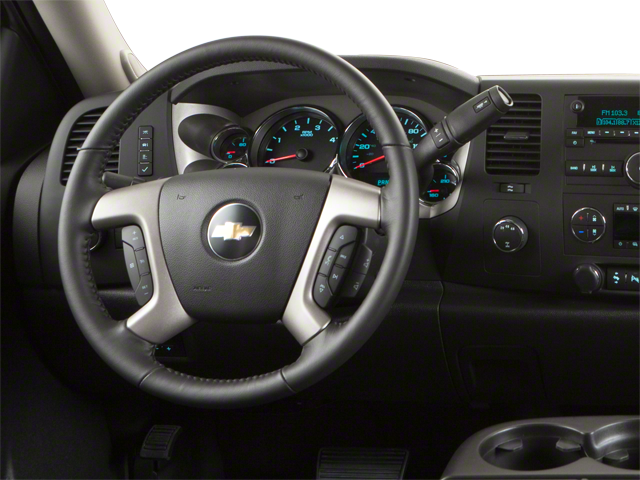

• Steering wheel includes theft-deterrent locking feature
• Visors, driver and front passenger, sliding with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• XM Radio, delete

• Air cleaner, high-capacity
• Alternator, 125 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, hydroformed front section
• Rear axle, 3.73 ratio
• Recovery hooks, front, frame-mounted
• Steering, power, recirculating ball
• Suspension Package, Handling/Trailering, heavy-duty includes 35mm twin tube shock absorbers and 36 front stabilizer bar
• Suspension, front independent, torsion bar with increased front GAWR
• Suspension, rear 4+1 multi-leaf springs

• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's Manual and child safety seat instructions for more safety information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete
• StabiliTrak, stability control system includes electronic trailer sway control, intelligent brake assist and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• with outboard head restraints and center fold-down armrest with storage (STD)

DOOR LOCKS, POWER

• includes Remote Keyless Entry

REMOTE KEYLESS ENTRY

• with 2 transmitters
• panic button and content theft alarm.

MIRRORS, OUTSIDE HIGH-VISIBILITY VERTICAL CAMPER-STYLE, BLACK

• with manual folding and extension and lower convex spotter glass

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

CRUISE CONTROL, ELECTRONIC

• with set and resume speed
• located on steering wheel

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp. 30-amp nominal rating

WHEELS, 17" (43.2 CM) STEEL

• (STD)

SNOW PLOW PREP PACKAGE

• includes 10-amp power for backup and roof emergency light
• high-flow front bumper
• forward lamp wiring harness
• (TRW) Provision for cab roof mounted lamp/beacon
• instrument panel jumper wiring harness for electric trailer brake controller
• (NZZ) Skid Plate Package and increased Front Gross Axle Weight Rating

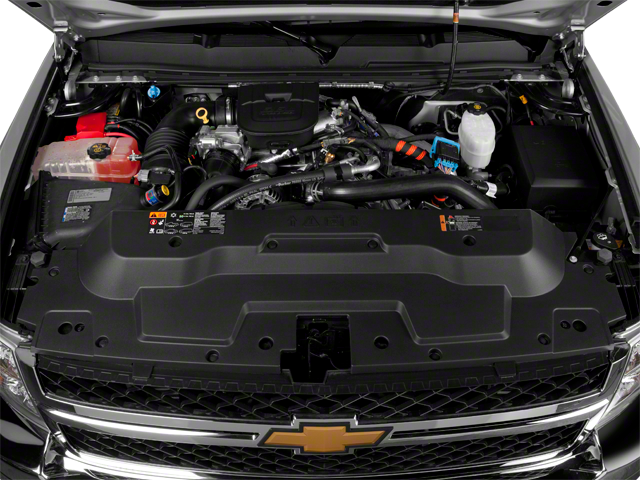

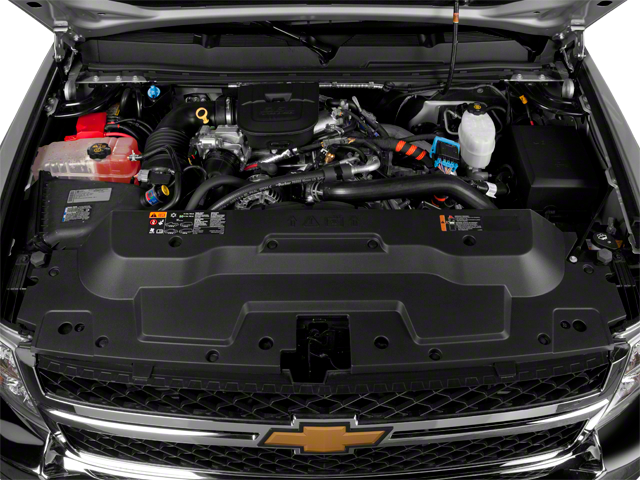

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI

• (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

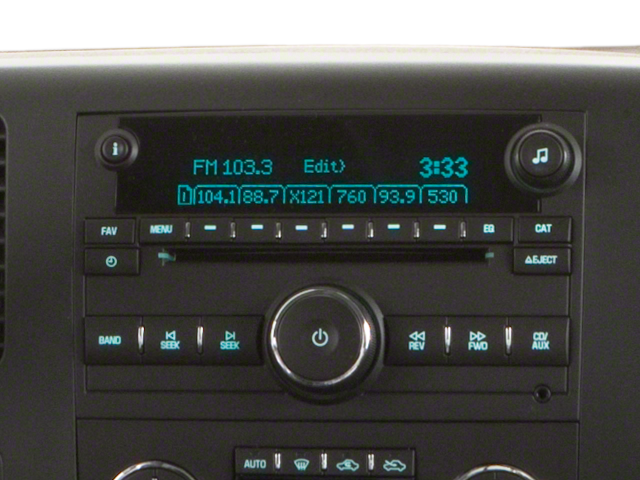

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan and digital clock (STD)

SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY-DUTY

• includes 35mm twin tube shock absorbers and 36 front stabilizer bar (STD)

• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING with outboard head restraints and center fold-down armrest with storage (STD)
• DOOR LOCKS POWER includes Remote Keyless Entry
• DARK TITANIUM CLOTH SEAT TRIM
• REMOTE KEYLESS ENTRY with 2 transmitters panic button and content theft alarm.
• MIRRORS OUTSIDE HIGH-VISIBILITY VERTICAL CAMPER-STYLE BLACK with manual folding and extension and lower convex spotter glass
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• BATTERY AUXILIARY HEAVY-DUTY 600 COLD-CRANKING AMPS MAINTENANCE-FREE
• GVWR 9500 LBS. (4309 KG)
• CRUISE CONTROL ELECTRONIC with set and resume speed located on steering wheel
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp. 30-amp nominal rating
• LICENSE PLATE FRONT MOUNTING PACKAGE
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform and 2.5- inch receiver with 2" adapter 7-wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector wiring harness for after-market trailer brake controller (located in the instrument panel harness) and (JL1) integrated trailer brake controller
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• REAR AXLE 3.73 RATIO
• TRAILER BRAKE CONTROLLER INTEGRATED
• ALTERNATOR 160 AMPS
• WHEELS 17" (43.2 CM) STEEL (STD)
• SNOW PLOW PREP PACKAGE includes 10-amp power for backup and roof emergency light high-flow front bumper forward lamp wiring harness (TRW) Provision for cab roof mounted lamp/beacon instrument panel jumper wiring harness for electric trailer brake controller (NZZ) Skid Plate Package and increased Front Gross Axle Weight Rating
• DEFOGGER REAR-WINDOW ELECTRIC
• SUMMIT WHITE
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• AUDIO SYSTEM AM/FM STEREO with seek-and-scan and digital clock (STD)
• SEAT ADJUSTER MANUAL LUMBAR CONTROL ON THE DRIVER-SIDE
• PAINT SOLID
• SKID PLATE PACKAGE FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY includes 35mm twin tube shock absorbers and 36 front stabilizer bar (STD)
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• Split Bench Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• A/C
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Brake Assist
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 600
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3610
• Curb Weight - Rear (lbs): 2668
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1425
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2375
• Maximum Trailering Capacity (lbs): 14000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QXT
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QXT
• Rear Tire Order Code: QHQ
• Front Tire Size: LT265/70R17E
• Front Tire Size: LT245/75R17
• Rear Tire Size: LT265/70R17E
• Rear Tire Size: LT245/75R17
• Front Tire Capacity (lbs): 2760
• Front Tire Capacity (lbs): 2580
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): 3100
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 144.2
• Length, Overall w/o rear bumper (in): 230.6
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 77.9
• Overhang, Front (in): 38.8
• Overhang, Rear w/o bumper (in): 52.6
• Front Bumper to Back of Cab (in): 141.4
• Cab to Axle (in): 41.6
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 38.2
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.8
• Ground Clearance, Rear (in): 8.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 60.3
• Second Head Room (in): 39.5
• Second Leg Room (in): 34.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 61.8
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Ext Cab 6.5' Fleetside
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
