• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger. Includes rear air conditioning outlets in center console when bucket seats are ordered
• Assist handles, front passenger and rear outboard
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media
• Audio system feature, USB port
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface), with specific steering wheel controls

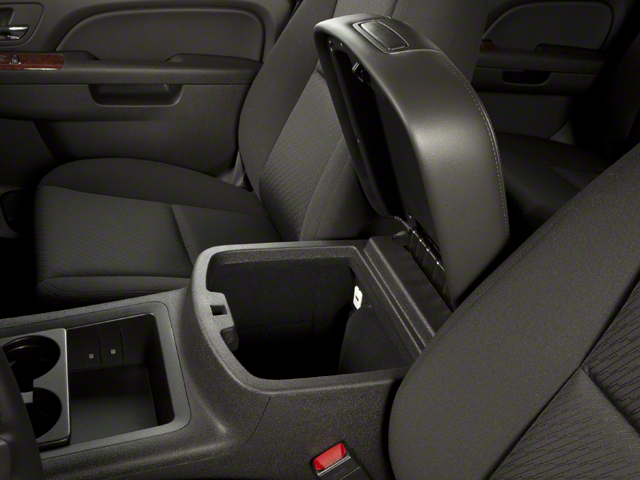

• Console, floor with storage area, cup holders and integrated second row audio controls
• Cruise control, electronic with set and resume speed
• Defogger, rear-window electric
• Door locks, power programmable with lockout protection
• Floor covering, color-keyed carpeting with (B58) carpeted floor mats
• Headliner, cloth
• Lighting, interior with dome lamp, driver-and passenger-side door switch with delayed entry feature, cargo light, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Mirror, inside rearview manual day/night
• Pedals, power-adjustable for accelerator and brake
• Power outlets 2 instrument panel-mounted auxiliary with covers, 12-volt (On vehicles equipped with (A95) front bucket seats or (AN3) front leather appointed buckets seats, also includes 1 outlet inside center console and 1 in rear of console)
• Remote vehicle starter system includes Remote Keyless Entry

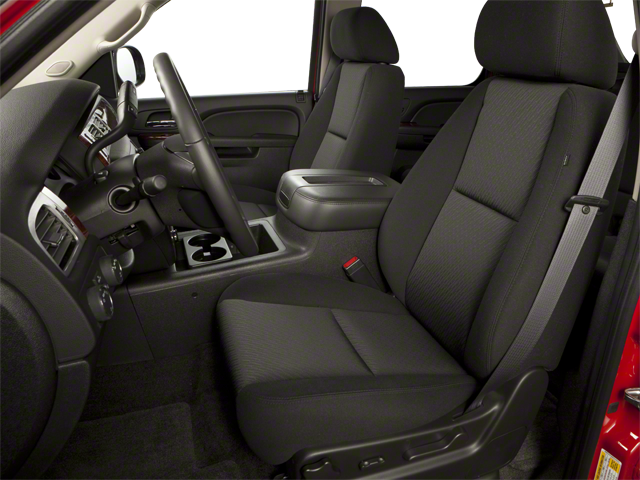

• Seats, front bucket with (AG1) 6-way power driver and (AG2) front passenger seat adjusters, adjustable head restraints, (AM1) driver manual lumbar control, floor console and rear storage pockets

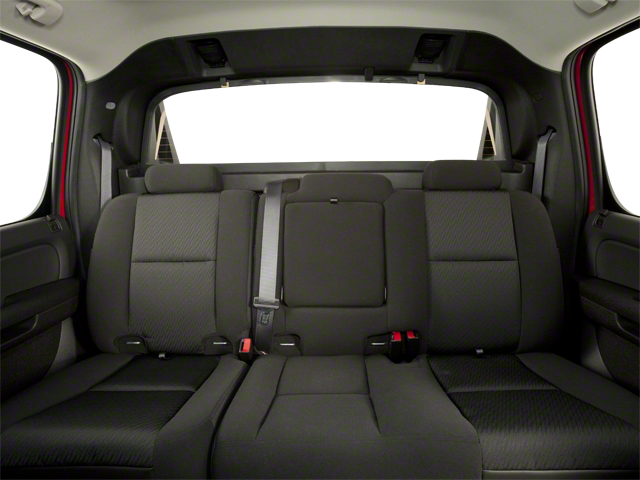

• Seats, rear 60/40 split-bench, 3-passenger, flip and fold with child seat top tether anchor

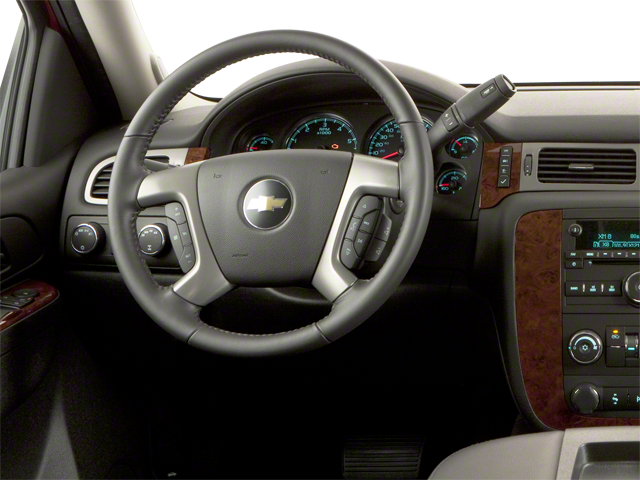

• Steering wheel controls, mounted audio and cruise controls
• Steering wheel, leather-wrapped
• Theft-deterrent system, vehicle, PASS-Key III
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on

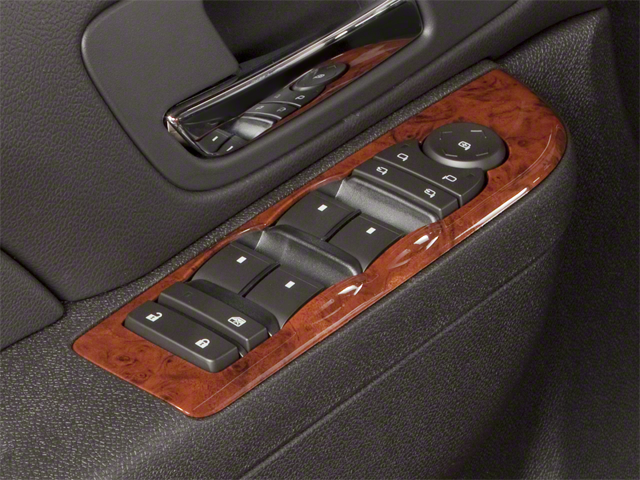

• Windows, power with driver and front passenger Express-Down and lockout features
• XM Radio (subscription required)

• Alternator, 145 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Differential, heavy-duty locking rear
• Four wheel drive
• GVWR, 7200 lbs. (3266 kg) (Requires CK10936 models)
• Key, single, 2-sided
• Rear axle, 3.08 ratio (Not available with (K5L) heavy-duty trailering package)
• Steering, power
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• Trailering equipment includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and (VR4) 2" trailering receiver

• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, front and rear outboard seating positions with rollover sensor (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat outboard occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Daytime Running Lamps with automatic exterior lamp control
• LATCH system, (Lower Anchors and Top tethers for CHildren), for child safety seats
• OnStar Equipped (subscription required)
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• Rear Parking Assist, Ultrasonic with audible warning
• Safety belts 3-point, driver and front passenger and second row all seating positions, center seating position in first row is lap only
• StabiliTrak, stability control system with traction control
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• Tire Pressure Monitoring System (does not apply to spare tire)

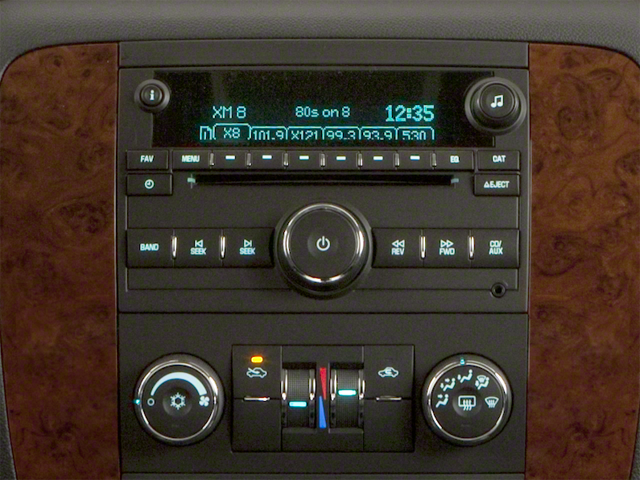

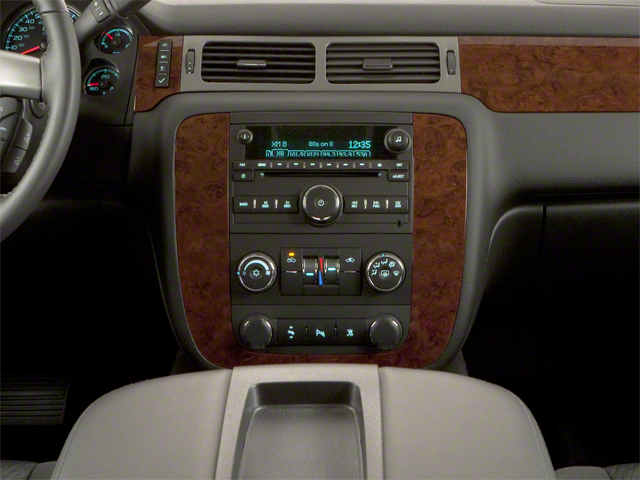

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER

• and MP3 playback
• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• automatic volume
• TheftLock
• auxiliary input jack
• USB port and 36 cross-band presets (STD)

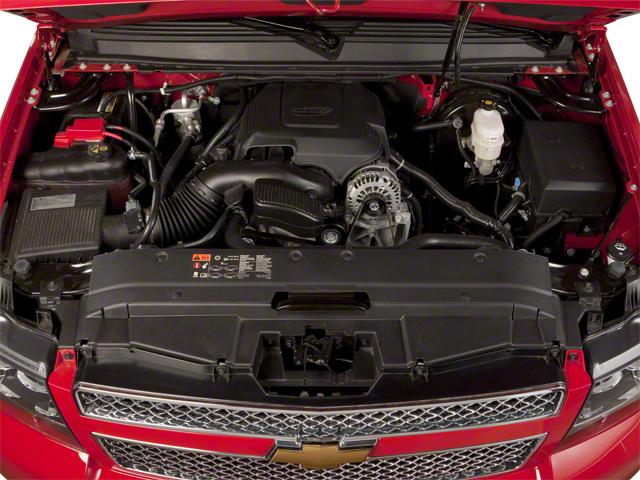

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL

• with Active Fuel Management
• capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [239 kW] @ 5400 rpm
• 335 lb-ft of torque [454 N-m] @ 4000 rpm
• with E85 ethanol - 326 hp [243 kW] @ 5300 rpm
• 348 lb-ft of torque [472 N-m] @ 4400 rpm)
• aluminum block (STD)

MIRROR, INSIDE REARVIEW

• with rear camera display

SUSPENSION PACKAGE, PREMIUM SMOOTH RIDE

• (STD)

SUNROOF, POWER, TILT-SLIDING

• with express-open and wind deflector

LT PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

SEATS, FRONT BUCKET

• with (AG1) 6-way power driver and (AG2) front passenger seat adjusters
• adjustable head restraints
• (AM1) driver manual lumbar control
• floor console and rear storage pockets (STD)

• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER and MP3 playback seek-and-scan digital clock auto-tone control Radio Data System (RDS) automatic volume TheftLock auxiliary input jack USB port and 36 cross-band presets (STD)
• ENGINE VORTEC 5.3L V8 SFI FLEXFUEL with Active Fuel Management capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [239 kW] @ 5400 rpm 335 lb-ft of torque [454 N-m] @ 4000 rpm with E85 ethanol - 326 hp [243 kW] @ 5300 rpm 348 lb-ft of torque [472 N-m] @ 4400 rpm) aluminum block (STD)
• REARVIEW CAMERA SYSTEM
• REAR AXLE 3.08 RATIO
• WHEELS 4-20" X 8.5" (50.8 CM X 21.6 CM) POLISHED ALUMINUM
• TIRES P275/55R20 ALL-SEASON BLACKWALL
• TRANSMISSION 6-SPEED AUTOMATIC
• MIRROR INSIDE REARVIEW with rear camera display
• SUSPENSION PACKAGE PREMIUM SMOOTH RIDE (STD)
• EBONY CUSTOM LEATHER-APPOINTED
• SUNROOF POWER TILT-SLIDING with express-open and wind deflector
• LT PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SEATS FRONT BUCKET with (AG1) 6-way power driver and (AG2) front passenger seat adjusters adjustable head restraints (AM1) driver manual lumbar control floor console and rear storage pockets (STD)
• IMPERIAL BLUE METALLIC
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Conventional Spare Tire
• Conventional Spare Tire
• Luggage Rack
• Luggage Rack
• Running Boards/Side Steps
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Cargo Shade
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Satellite Radio
• Requires Subscription
• Premium Sound System
• MP3 Capability
• Auxiliary Audio Input
• Rear Seat Audio Controls
• Power Outlet
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Bucket Seats
• Driver Adjustable Lumbar
• Pass-Through Rear Seat
• Rear Bench Seat
• Rear Seat Audio Controls
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Cruise Control
• Steering Wheel Audio Controls
• Immobilizer
• Cruise Control
• Power Windows
• Power Door Locks
• Adjustable Pedals
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Power Outlet
• Front Reading Lamps
• Rear Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Rear Head Air Bag
• Front Side Air Bag
• Rear Parking Aid
• Telematics
• Navigation from Telematics
• Requires Subscription
• Telematics
• Requires Subscription
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Requires Subscription
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 16.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 2909
• Curb Weight - Rear (lbs): 2693
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Suspension
• Suspension Type - Front: Coil Over Shock
• Suspension Type - Rear: Multi-Link
• Spring Capacity - Front (lbs): 3800
• Spring Capacity - Rear (lbs): 4100
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3800
• Axle Capacity - Rear (lbs): 4100
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 1.81
• Shock Absorber Diameter - Rear (mm): 1.81
• Stabilizer Bar Diameter - Front (in): 1.12
• Stabilizer Bar Diameter - Rear (in): 1.12
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x .78
• Tires
• Front Tire Order Code: QSS
• Front Tire Order Code: QAN
• Rear Tire Order Code: QSS
• Rear Tire Order Code: QAN
• Spare Tire Order Code: ZRS
• Front Tire Size: P275/55R20
• Front Tire Size: P265/70R17
• Rear Tire Size: P275/55R20
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2204
• Front Tire Capacity (lbs): 2135
• Rear Tire Capacity (lbs): 2204
• Rear Tire Capacity (lbs): 2135
• Spare Tire Capacity (lbs): 2204
• Spare Tire Capacity (lbs): 2135
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: 3.0
• Turning Diameter - Curb to Curb (ft): 43.0
• Frame
• Frame Type: Body on
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Inboard LH Frame Rail
• Exterior Dimensions
• Wheelbase (in): 130.0
• Length, Overall w/o rear bumper (in): 221.3
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 76.6
• Overhang, Front (in): 38.8
• Overhang, Rear w/o bumper (in): 52.9
• Ground to Top of Load Floor (in): 31.0
• Ground Clearance, Front (in): 9.1
• Ground Clearance, Rear (in): 9.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 63.3 Min, 98.2 Max
• Cargo Box Width @ Top, Rear (in): 50.0
• Cargo Box Width @ Floor (in): 50.0
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.5
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 45.5
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 60.3
• Second Head Room (in): 40.0
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 62.3
• Summary

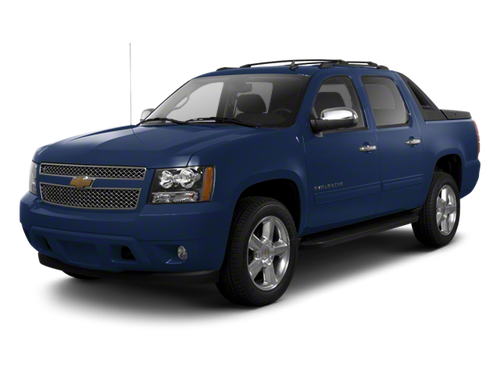

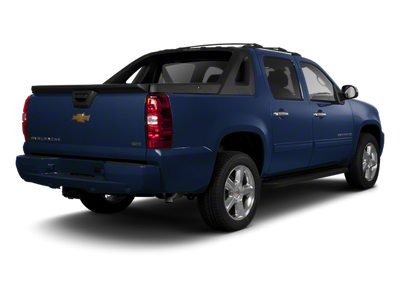

• Vehicle Name: Chevrolet Avalanche
• Body Style: 4 Door Crew Cab
• Emissions
• EPA Greenhouse Gas Score: 2
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.0
