• (4) air registers w/positive shut-off
• Ashtray & cigar lighter
• Auxiliary pwr point

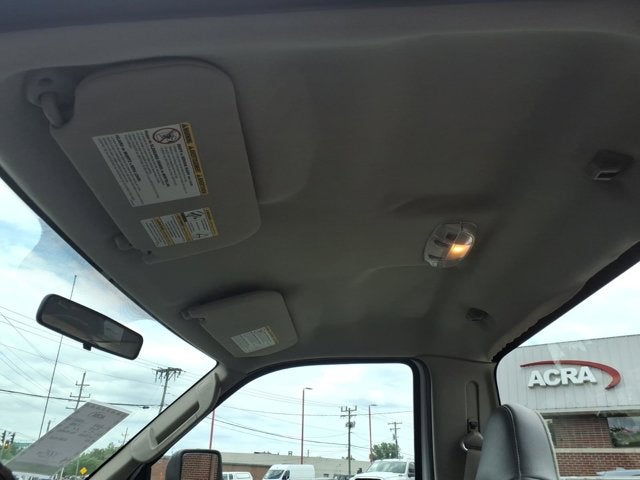

• Color-keyed cloth headliner
• Color-keyed scuff plates
• Dash-top tray
• Door operated dome lamp w/time delay off & IP switch
• Driver & passenger grab handles
• Dual color-keyed cloth sunvisors-inc: driver-side map strap, passenger-side mirror insert
• Dual color-keyed coat hooks
• Front passenger-side roof ride handle
• Glove box
• Instrument panel mounted storage bin & trash bag hook
• Map lamps
• Tire pressure monitoring system

• (2) front tow hooks
• 115-amp HD alternator
• 2-ton mechanical jack
• 4-wheel anti-lock braking system (ABS)
• 4.10 axle ratio
• 72 amp/hr (650 CCA) battery
• 8' pickup box-inc: (6) tie-down hooks, partitionable & stackable storage
• Class V trailer hitch receiver-inc: 2" hitch
• Front stabilizer bar
• Full-size spare tire w/lock & carrier
• HD gas shock absorbers
• Pwr 4-wheel disc brakes w/vacuum boost
• Pwr steering
• Rear wheel drive
• Trailer tow pkg-inc: 7-wire harness w/relays, 7/4 pin combination connector, trailer brake wiring kit w/o controller
• Twin I-beam front axle w/coil spring suspension

• 4-wheel anti-lock braking system (ABS)
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Driver & front passenger airbags w/passenger-side deactivation switch

5.4L SOHC 24-VALVE SMFI TRITON V8 ENGINE

• (STD)

• Rear Wheel Drive
• Tow Hitch
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Power Steering
• 4-Wheel Disc Brakes
• Intermittent Wipers
• Trip Computer
• Tire Pressure Monitor

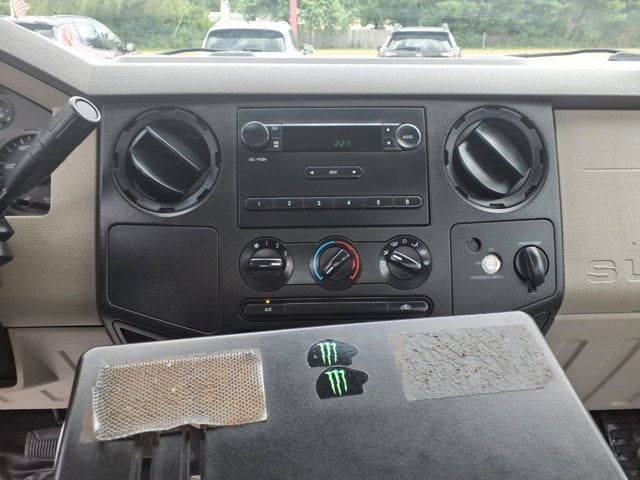

• AM/FM Stereo
• Power Outlet
• Front Reading Lamps
• Passenger Vanity Mirror
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): HD 115
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 26.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3650
• Gross Axle Wt Rating - Rear (lbs): 5892
• Curb Weight - Front (lbs): 3201
• Curb Weight - Rear (lbs): 2474
• Gross Vehicle Weight Rating Cap (lbs): 8800
• Gross Combined Wt Rating (lbs): 17000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1665
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 11100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2775
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 3650
• Spring Capacity - Rear (lbs): 6100
• Axle Type - Front: Ford Twin-I-Beam
• Axle Type - Rear: Visteon Full-Floating
• Axle Capacity - Front (lbs): 4850
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.66 x 0.58
• Rear Brake Rotor Diam x Thickness (in): 13.39 x 0.47
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: TBK
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: 664
• Revolutions/Mile @ 45 mph - Rear: 664
• Revolutions/Mile @ 45 mph - Spare: 664
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.7
• Turning Diameter - Wall to Wall (ft): 49.6
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 38
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 137.0
• Length, Overall w/o rear bumper (in): 227.0
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 75.9
• Overhang, Front (in): 37.6
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 118.9
• Cab to Axle (in): 56.3
• Cab to End of Frame (in): 96.6
• Ground to Top of Load Floor (in): 33.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 36.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.1

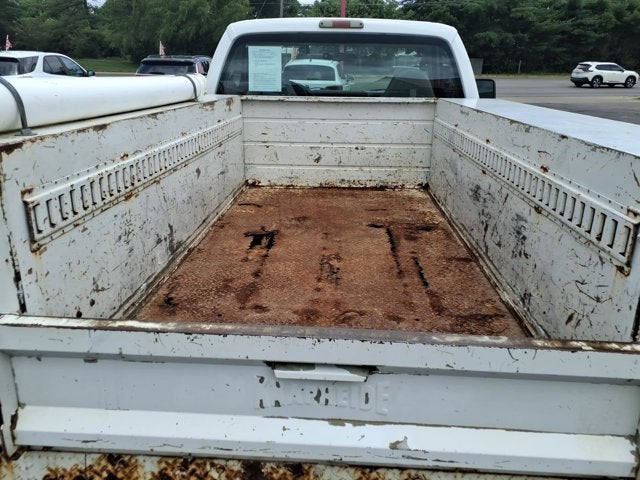

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.0
• Cargo Box Width @ Top, Rear (in): 63.6
• Cargo Box Width @ Floor (in): 60.6
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 77.4
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Summary

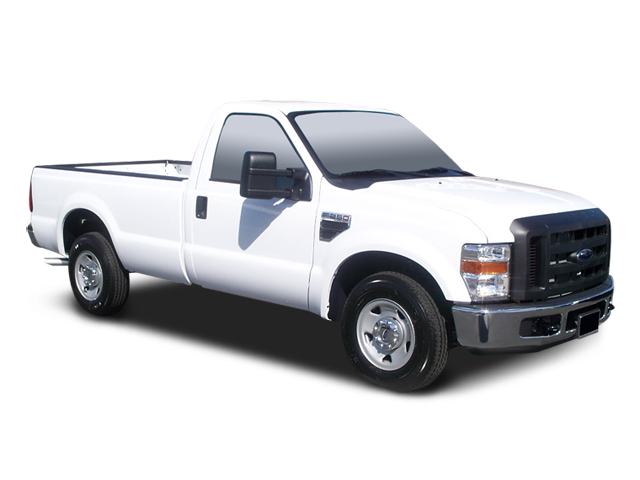

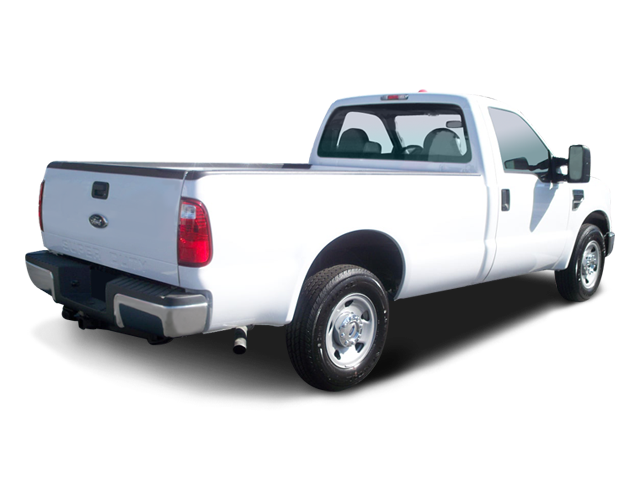

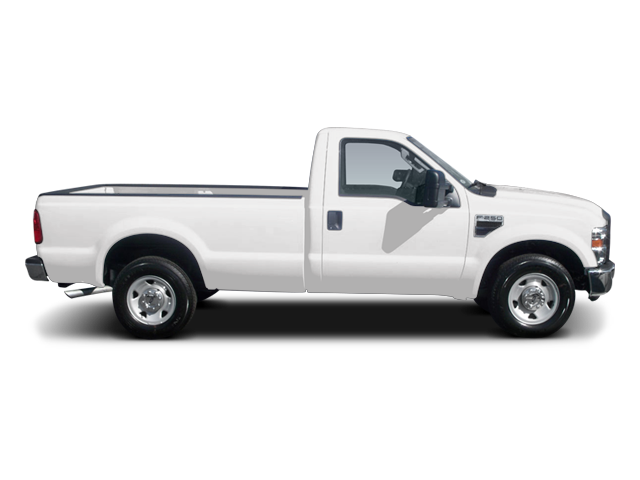

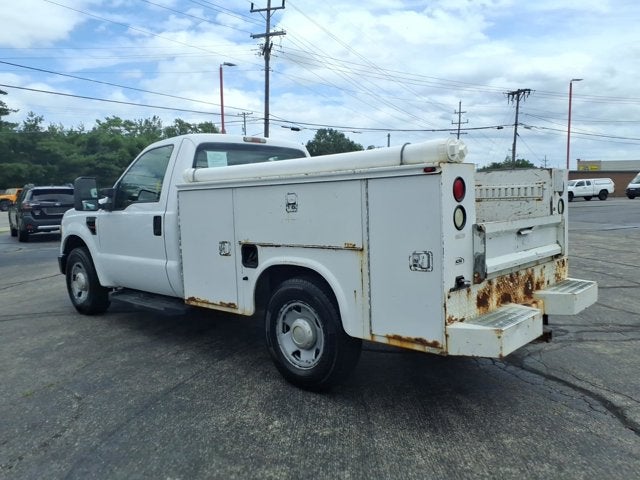

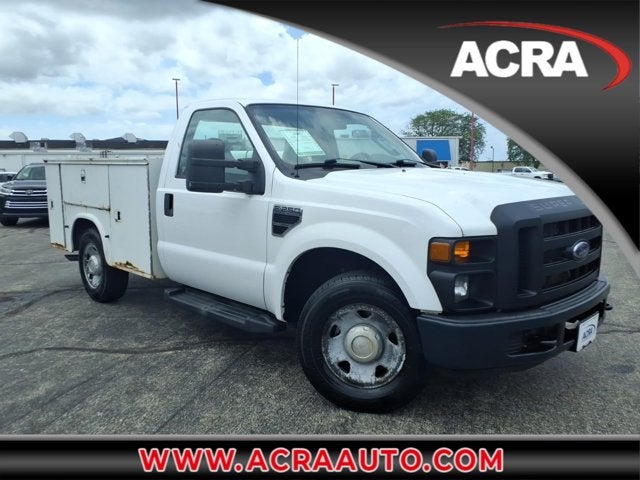

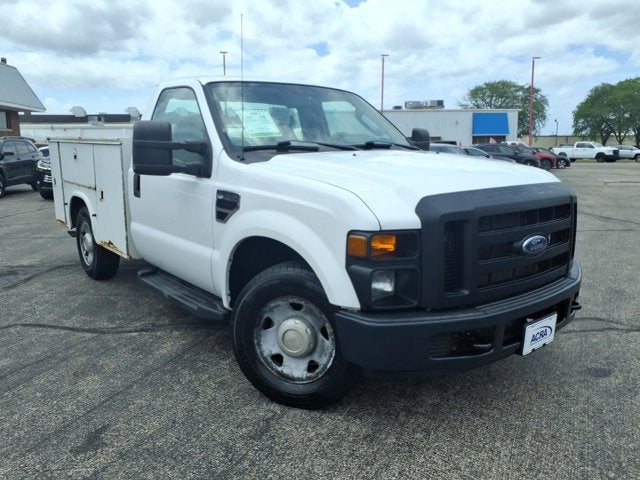

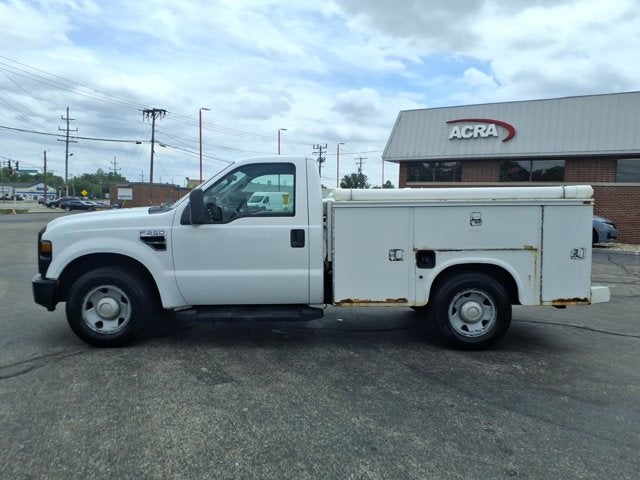

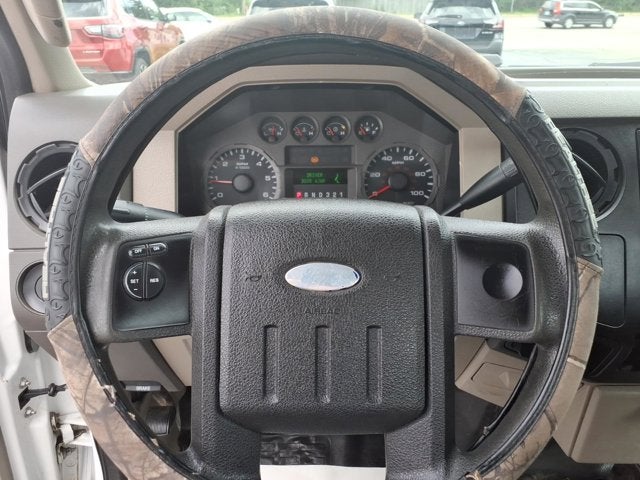

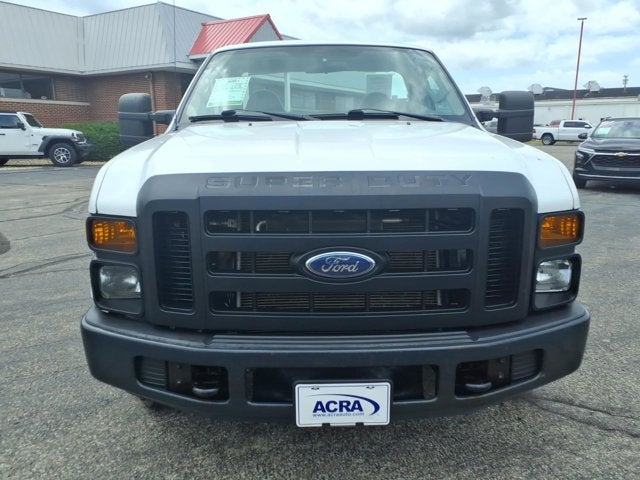

• Vehicle Name: Ford Super Duty F-250 SRW
• Body Style: Reg Cab 8'
• Body Code: 137" WB
