• Air conditioning, single-zone
• Audio system feature, 4-speaker system
• Cruise control, steering wheel-mounted

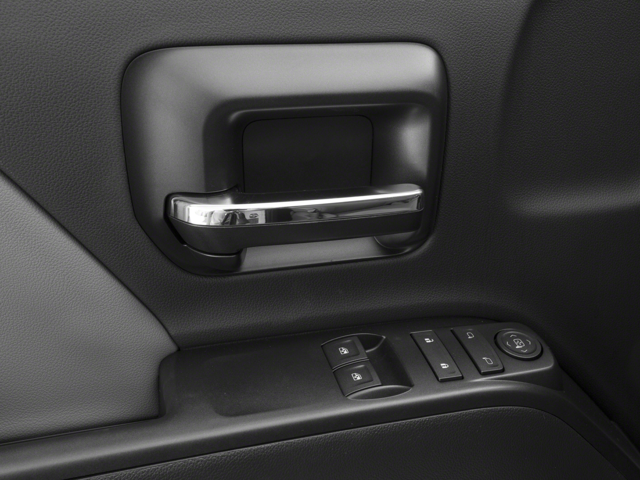

• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• OnStar Delete

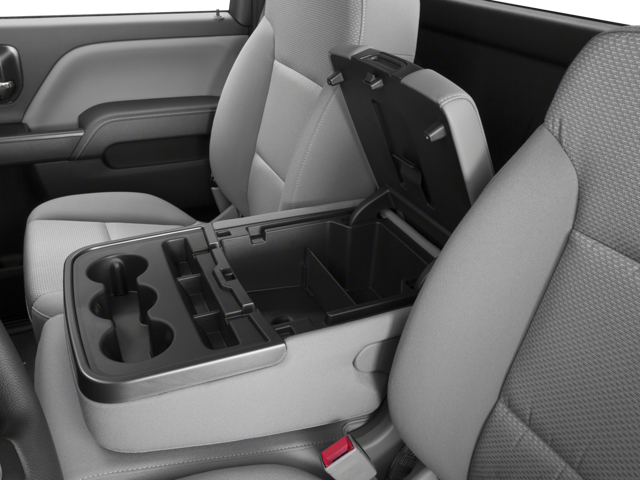

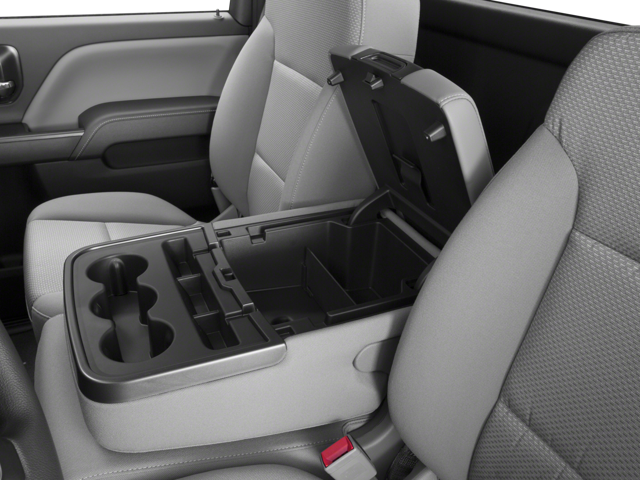

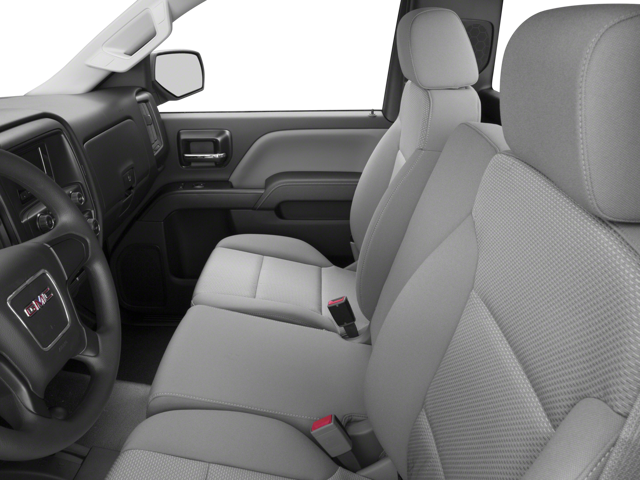

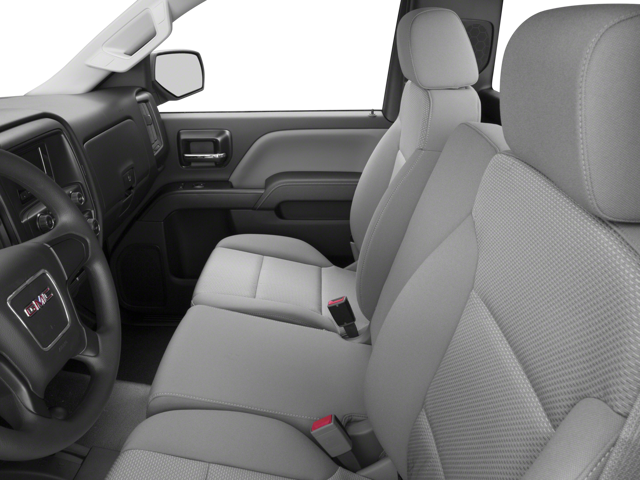

• Seats, front 40/20/40 split-bench 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• SiriusXM Satellite Radio, delete

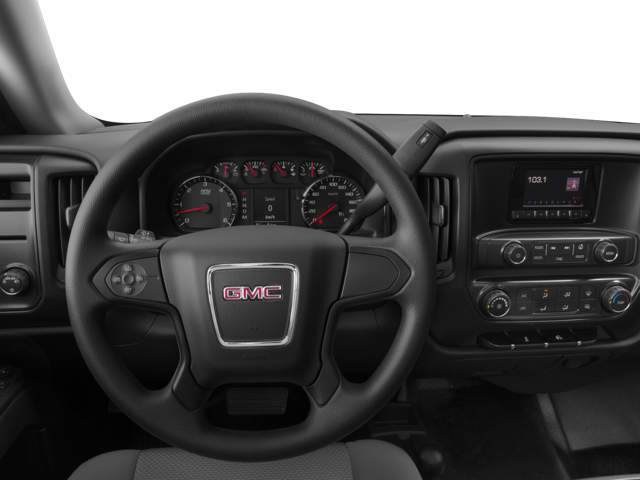

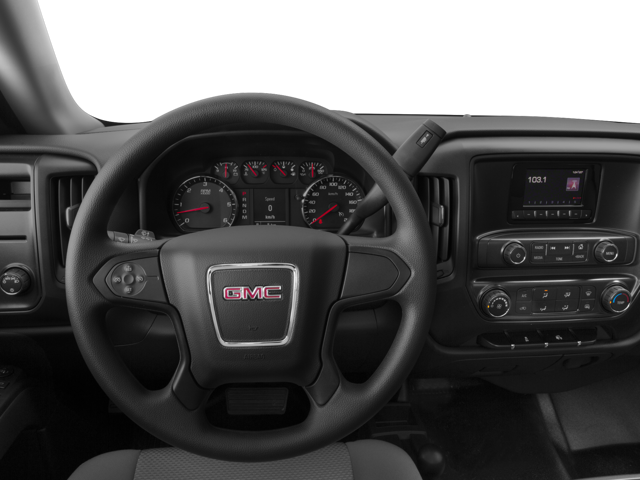

• Steering column, manual Tilt-Wheel

• Alternator, 150 amps
• Battery, heavy-duty 730 cold-cranking amps/70 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Body, Pick Up Box
• Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock
• Cargo tie downs (4), movable upper
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, fully-boxed, hydroformed front section
• Rear wheel drive
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Suspension Package, Handling/Trailering, heavy-duty includes 46 mm piston monotube shocks and 36mm front stabilizer bar

• Air bags, dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain airbags for front and rear outboard seating positions; includes right-front airbag Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

WHEELS, 17" X 8" (43.2 CM X 20.3 CM) PAINTED STEEL

• (STD)

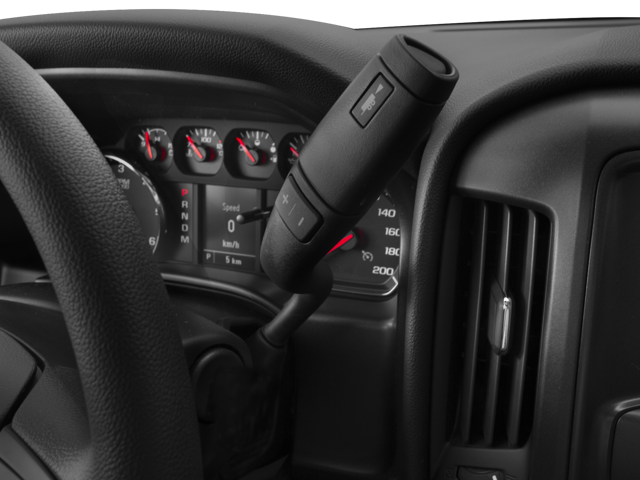

TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

TIRES, P255/70R17 ALL-SEASON, BLACKWALL

• (STD)

BODY, PICK UP BOX

• (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

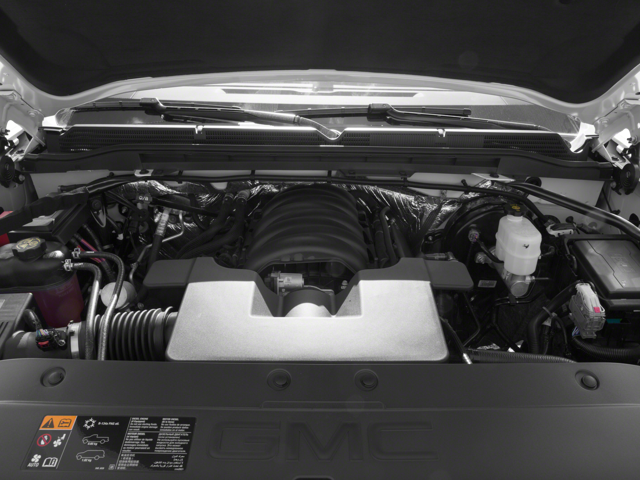

ENGINE, 4.3L ECOTEC3 V6 WITH ACTIVE FUEL MANAGEMENT

• Direct Injection and Variable Valve Timing
• includes aluminum block construction with FlexFuel capability
• capable of running on unleaded or up to 85% ethanol (285 hp [212 kW] @ 5300 rpm
• 305 lb-ft of torque [413 Nm] @ 3900 rpm) (STD)

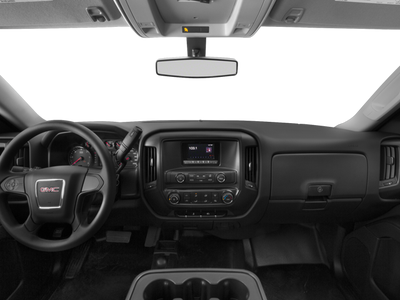

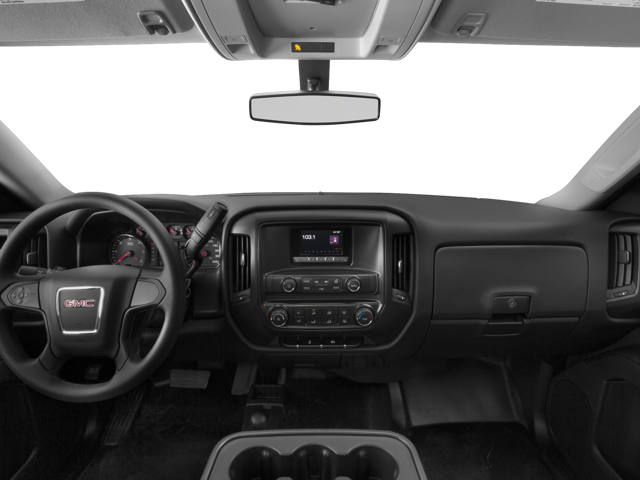

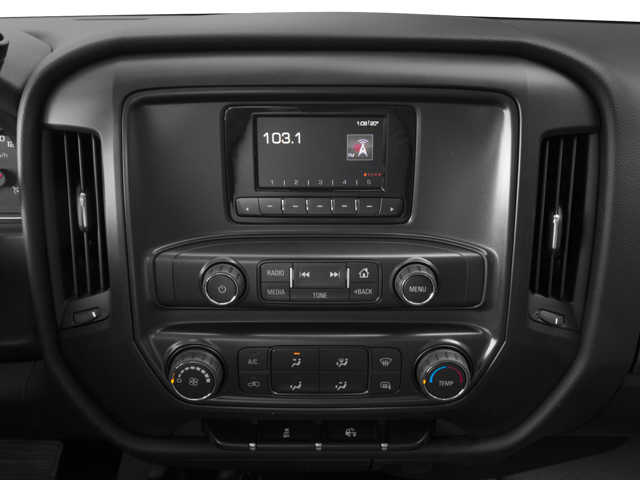

AUDIO SYSTEM, 4.2" DIAGONAL COLOR DISPLAY, AM/FM STEREO

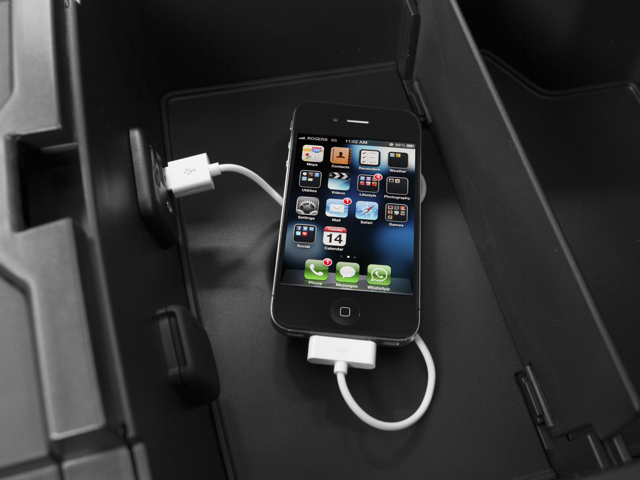

• with USB ports
• auxiliary jack and SD card slot (STD)

• WHEELS 17" X 8" (43.2 CM X 20.3 CM) PAINTED STEEL (STD)
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• TRANSMISSION 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• TIRES P255/70R17 ALL-SEASON BLACKWALL (STD)
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• BODY PICK UP BOX (STD)
• TRAILERING EQUIPMENT includes trailer hitch 7-pin and 4-pin connectors (Includes (G80) locking rear differential.
• WORK TRUCK PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• ENGINE 4.3L ECOTEC3 V6 WITH ACTIVE FUEL MANAGEMENT Direct Injection and Variable Valve Timing includes aluminum block construction with FlexFuel capability capable of running on unleaded or up to 85% ethanol (285 hp [212 kW] @ 5300 rpm 305 lb-ft of torque [413 Nm] @ 3900 rpm) (STD)
• E85 FLEXFUEL CAPABLE
• SUMMIT WHITE
• REAR AXLE 3.23 RATIO
• GVWR 6700 LBS. (3039 KG)
• JET BLACK/DARK ASH CLOTH SEAT TRIM
• LICENSE PLATE KIT FRONT
• AUDIO SYSTEM 4.2" DIAGONAL COLOR DISPLAY AM/FM STEREO with USB ports auxiliary jack and SD card slot (STD)
• CUSTOMER DIALOGUE NETWORK
• WHEEL FULL-SIZE SPARE 17" (43.2 CM) STEEL
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Adjustable Steering Wheel
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 24
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3300
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 6700
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 590
• Maximum Trailering Capacity (lbs): 9800
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3300
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3300
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 46.00
• Shock Absorber Diameter - Rear (mm): 35.00
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.00 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.60 x 0.79
• Tires
• Front Tire Order Code: RBZ
• Rear Tire Order Code: RBZ
• Spare Tire Order Code: ZBZ
• Front Tire Size: P255/70R17
• Rear Tire Size: P255/70R17
• Spare Tire Size: P255/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 133.00
• Length, Overall w/o rear bumper (in): 224.43
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 73.50
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 116.90
• Cab to Axle (in): 55.40
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.33
• Ground Clearance, Rear (in): 8.33
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.77
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.23
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.40
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 42.40
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Front Hip Room (in): 60.73
• Summary

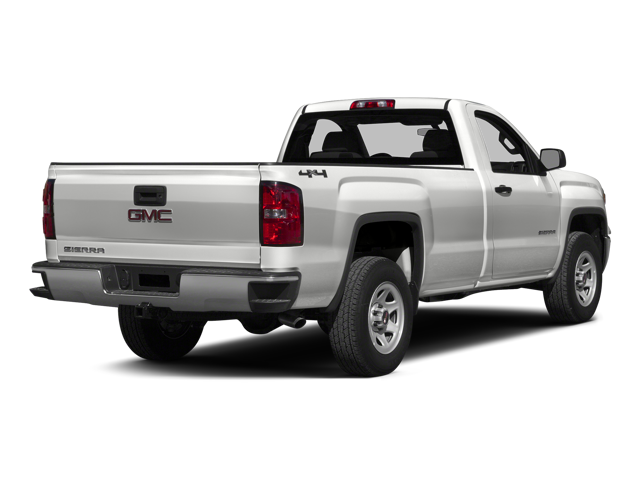

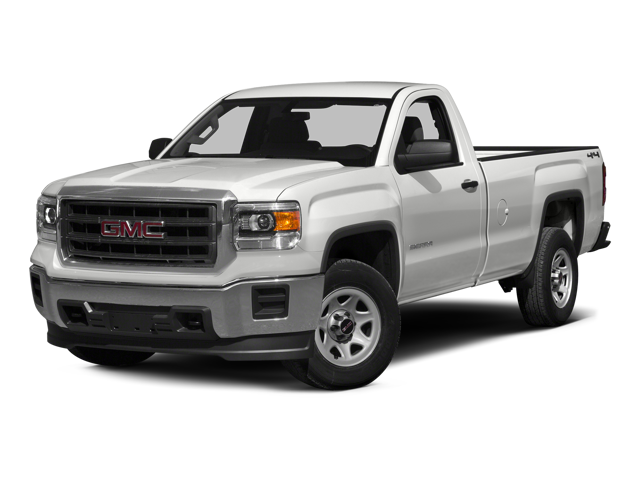

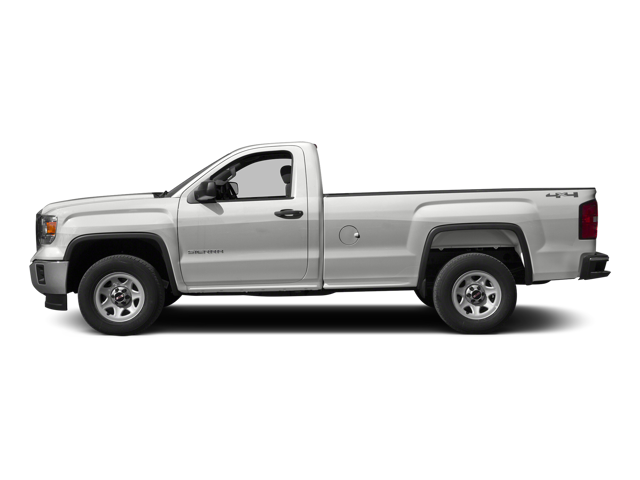

• Vehicle Name: GMC Sierra 1500
• Body Style: Reg Cab Pickup
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.0
